Investigation of Compact Antenna using Shorting Plates for Wireless Communication
DOI:
https://doi.org/10.22385/jctecs.v20i0.276Keywords:
Analytical formulation, compactness, circular polarization, shorting plateAbstract

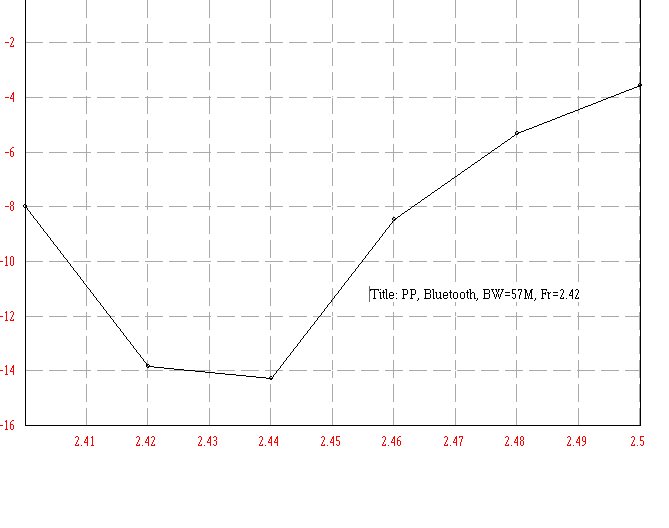

Compact structure of Microstrip patch antenna is reported in this paper. A new technique of reducing the size of antenna is investigated with analytical formulation by shorting a patch and ground plane with two plates and insertion of such unit in close vicinity to the feed position achieves a 90% size reduction with additional characteristics such as circular polarization, higher directivity and appropriate bandwidth. This paper describes analytical formulation and presents simulation and measurement results. The simulated and measured impedance bandwidths of proposed antenna is 2-5% and achieves a gain of 1.42dBi at operating frequency of 2.43GHz.Downloads
References
G. Kumar and K. P. Ray, Broadband Microstrip Antennas, Norwood, MA, Artech House, USA, 2003.
R. Garg, P. Bhartia, I. Bahl and A. Ittipiboon, Microstrip Antenna Design Handbook, Norwood, MA,
Artech House, USA, 2001.
B. Bhartia and I. J. Bahl, Norwood, MA, Microstrip Antennas, USA, 1980.
Amit A. Deshmukh and K. P. Ray, “Analysis of Shorted-Plate Compact and Broadband Microstrip
Antenna” IEEE Antennas and Propagation Magazine, Vol. 55, No. 6, December 2013.
K. L. Wong, Compact and Broadband Microstrip Antennas, New York, John Wiley & Sons, Inc., 2002.
K.F.Lee, Y.X.Guo, J.A.Hawkins, “Theory and experiment on microstrip patch antennas with shorting walls” IEE Pror.-Microw. Antennas Puopag.. Vol. 147, No. 6, December 2000.
Rong Lin Li, “Development and Analysis of a Folded Shorted-Patch Antenna With Reduced Size” IEEE TRANSACTIONS ON ANTENNAS AND PROPAGATION, VOL. 52, NO. 2, FEBRUARY 2004.
K. M. Luk, L. K. Au Yeung, C. L. Mak, and K. F. Lee, “Circular patch antenna with an L-shaped probe,” Microwave Opt. Technol. Lett., vol. 20, pp. 256–257, Feb. 1999.
Rebekka Porath, “Theory of Miniaturized Shorting-Post Microstrip Antennas” IEEE TRANSACTIONS ON ANTENNAS AND PROAGATION, VOL. 48, NO. 1, JANUARY 2000.
R. Waterhouse, “Small microstrip patch antenna,” Electron. Lett., vol.31, pp. 604–605, 1995.
S. Dey and R. Mittra, “Compact microstrip patch antenna,” Microwave Opt. Technol. Lett., vol. 13, pp. 12–14, Sept. 1996.
Y. D. Dong, H. Toyao, and T. Itoh, “Compact circularly-polarized patch antenna loaded with metamaterial structures”IEEE Trans. Antennas Propag., vol. 59, no. 11, pp. 4329–4333, Nov. 2011.
C. Y. Chiu, K. M. Shum, and C. H. Chan, “A tunable via-patch loaded PIFA with size reduction ”IEEE Trans. Antennas Propag., vol. 55, no. 1, pp. 65–71, Jan. 2007.
Kin-Lu Wong and Shan-Cheng Pan, “Compact triangular microstrip antenna” ELECTRONICS LETTERS 13th March 1997 Vol. 33 No. 6.
Pranjali Jumle and Prasanna Zade, “Analytical Study of Miniaturization of Microstrip Antenna for Bluetooth/WiMax” Springer Advances in Intelligent Systems and Computing (AISC) series. Indexed by: SCOPUS and Springerlink 2016.
